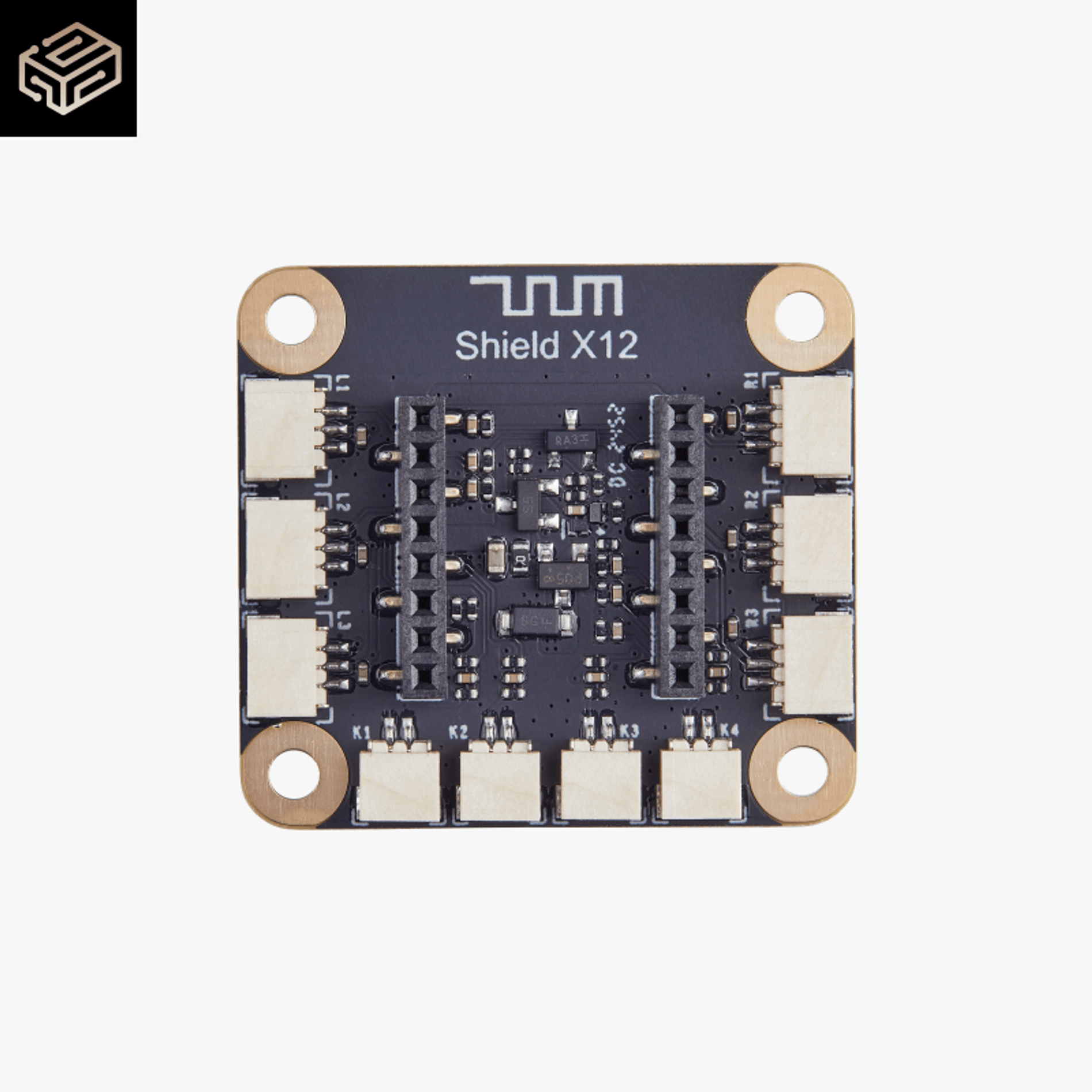

Introduction
The Remote Control Transmitter Shield can be combined with the Multi-Function Controller Core as the signal transmitting end for various CyberBrick projects. It is equipped with equipped with 6 ADC input channels and 4 digital input channels, which can be flexibly configured with joysticks, knobs, and custom buttons to meet diverse needs from basic remote control to advanced command programming.
Product Specifications
| Item Number | Component | Description |
| 1 | Power Input | XH2.54 2Pin DC power input |
| 2 | ADC Input Port | Connecting ADC modules such as joystick |
| 3 | Digital Input Port | Connecting binary-input modules such as momentary button |
| 4 | Core Slot/td> | Connectable with multi-function controller core |
| 5 | Orientation Mark | Ensure proper installation alignmen |
|

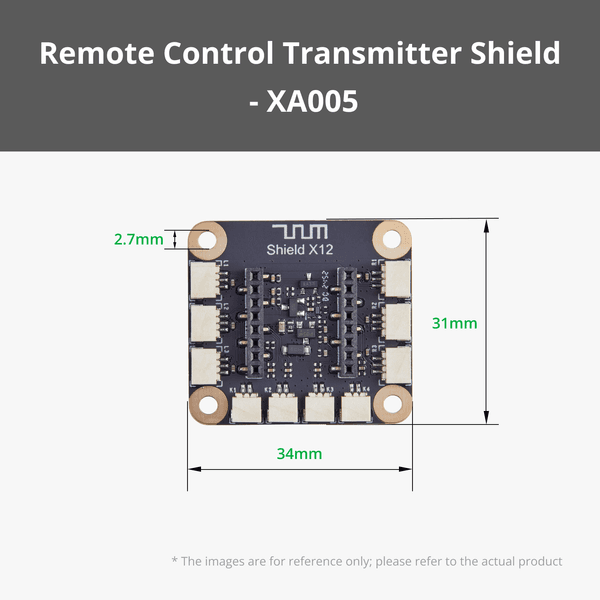

Product ID
|
Model
|
Input Voltage | Working Current | Input Channel | Weight | Size |
|
XA005
|
Shield X12 | DDC 4.5V – 12.6V | 65mA | 6CH ADC 4CH Digital |
5.5g | 34*31mm |
Can be combined with the Official R/C Combo Kits
